X-TERM2000LIGHT & HEAT 4000W B
IP65, 4xLED Downlight, 400V50hz, black
Item number: 382245
Alias-No.: URLHC42659005

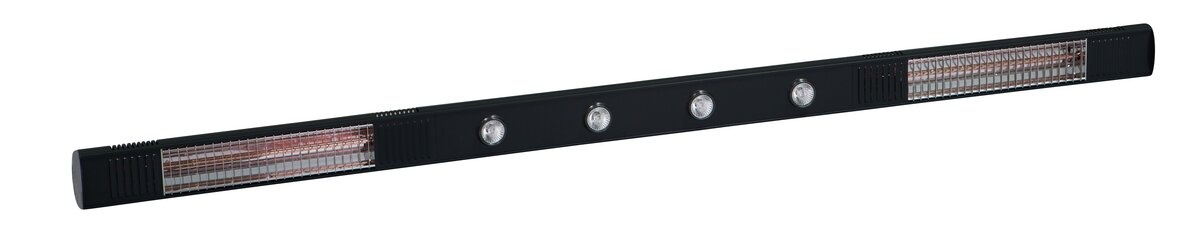

LIGHT & HEAT XL with fixed LED spotlights
The heater is equipped with two ULTRA LOW GLARE heating tubes, 2.000 watt each, with highly reduced red light and four fixed LED spots. The patented combination offers pleasant light effects and cozy warmth at the same time. The robust housing in polished aluminum is waterproof (IP65) and suitable for all outdoor areas, brackets for wall-mounting included. Please note: Up from 2kW we recommend using 16A slow blow fuses (C16).

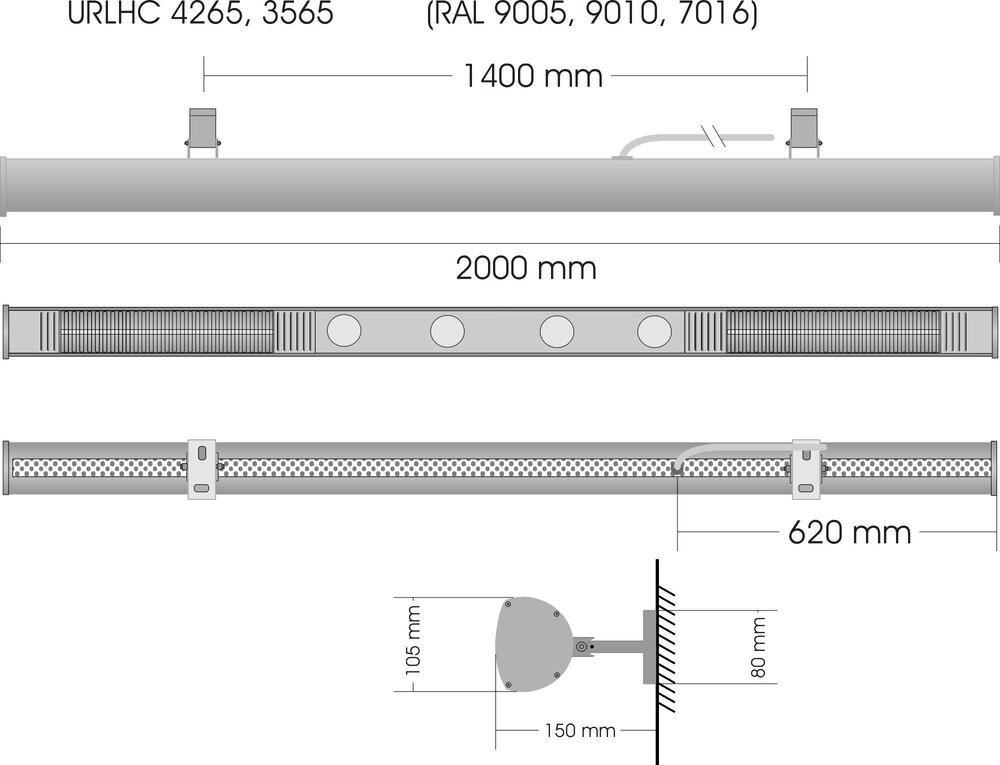

The heater has a total length of 2m and is available in standard colors polished aluminum as well as in black (RAL9005) and white (RAL9010). We deliver the heater in any other color at an additional fee. Please contact customer service under: info@burdawtg.de. The heater can be equipped with a CH or GB plug. Please contact customer service.
Recommendation for calculating the heat output in watts (W) according to the area in square meters (m²):
• 250W/m² for Outdoor no wind• 300W/m² for Outdoor partly windy
• 400W/m² for very cold outdoor areas like seaside/mountains.
Technical parameters
| Installation | ||
|---|---|---|
| Minimum installation height | 2,100 | mm |
| Nominal data | ||
|---|---|---|
| Color casing | Black | |
| Color casing, RAL | RAL 9005 | |
| Enclosure class | IP65 |
| Dimensions and weights | ||
|---|---|---|
| Width | 2,000 | mm |
| Height | 95 | mm |
| Depth | 125 | mm |
| Weight | 7.1 | kg |
| Motor/control supply | ||
|---|---|---|
| Frequency | 50 | Hz |
| Electric heat | ||
|---|---|---|
| Voltage heating | 400 | V |
| Maximum element temperature | 170 | °C |
| WEEE Nr. | ||
|---|---|---|
| WEEE Nr. | DE50492100 |
Alias-No.: BCSF9005
X-TERM Mounting Bracket Be.g. for Velcro mount KLS1KS, black
