X-BHC6003-ER CONTROLLER 3 ZON

The BHC6003-ER with keypad is a microprocessor based power controller inclusive of glands which has been designed to offer variable control for 3 separate 2kW loads from a 3-phase supply.

The system consists of three elements: A HMI unit 1(Human Machine Interface) which is wired via a low voltage 4-core cable to the main power unit 2, this then allows the operator to vary the output from off and 30% to 100% via a 10 step output. All the HMI functions are also available via the infra-red remote control handset 3.

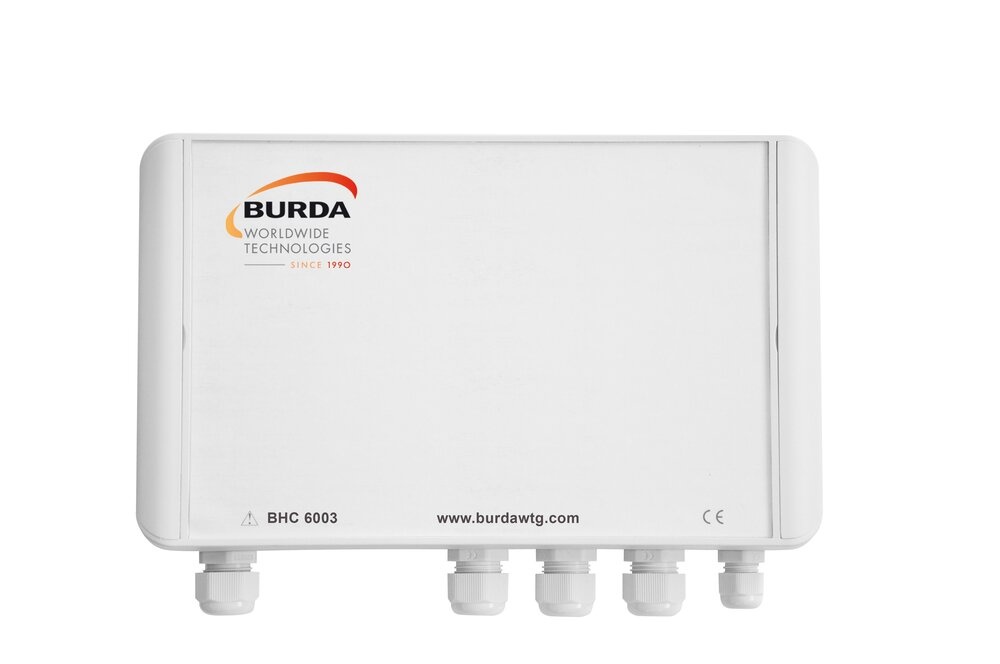

Additionally you can switch off all the channels or individual channels as required via the HMI. The main power unit which has been built into a smart robust IP65 rated enclosure can be mounted remotely from the HMI unit. The main power unit can also link up to an additional 2 power units allowing you to control 9 individual 2kW outputs or 8 other power units allowing you to control 9 power units (the 3 outputs within each power unit will increase at the same level in this configuration) up to 54kW in total (2kW x3 outputs x 9 Power units).
